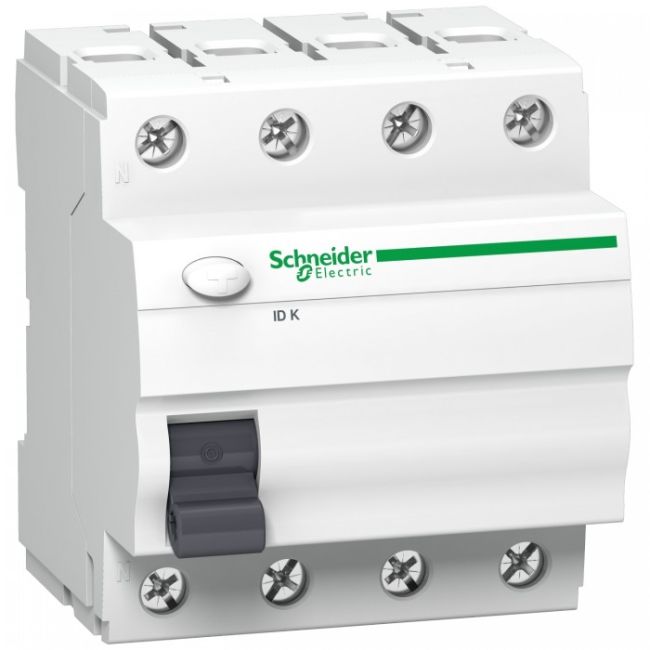

FID sklopka Schneider ID K 4P 40A 300mA
5.290,37 RSD
Acti9 ID K je prekidač sa diferencijalnom zaštitom sa dvostrukim povezivanjem (RCCB). Radi se o 4P prekidaču sa 40A nazivnom strujom, osetljivošću od 300mA sa AC tipom klase zaštite. Ovaj proizvod štiti od električnog udara indirektnim kontaktom i od opasnosti od požara. Postoji test taster za proveru ispravnosti rada uređaja. Priključivanje se vrši češljastom sabirnicom sa dvostrukim povezivanjem na odvodu ili tunelskim priključcima na dovodu/odvodu. Proizvod je usklađen sa IEC/EN 61008-1 standardom. The (Im/IΔm) rated breaking and making short circuit capacity is 500A. The (Inc/IΔc) conditional rated short circuit current is 4.5kA. Mehanička izdržljivost ide do 5000 ciklusa, a električna izdržljivost do 2000 ciklusa. Ue radni napon je 380VAC do 415VAC. Nazivna moć uključenja i isključenja (Im/IΔm) je 500A. Nazivna uslovna struja kratkog spoja (Inc/IΔc) je 4.5kA. Ugrađuje se na DIN šinu. Širina u 9mm modulima je 8. Boja proizvoda je bela (RAL 9003). Dimenzije su (Š) 72mm x (V) 81mm x (D) 68mm. Stepen zaštite IP20 (prema IEC/EN 60529 standardu) i postaje IP40 kada se nađe u modularnom ormanu. Radna temperatura je od -5°C do 40°C. Temperatura skladištenja je od -30°C do 70°C.
Šifra
05-A9Z06440
<div class="product attribute description">
<div class="value" >- Diferencijalni zaštitni prekidač (FID)<br/>
- ID K 4P<br/>
- 40A/300mA<br>PROGRAM LINIJA : FD TERTIARY<br>NAZIVNA STRUJA : 40A<br>BROJ POLOVA : 4P<br></div>
